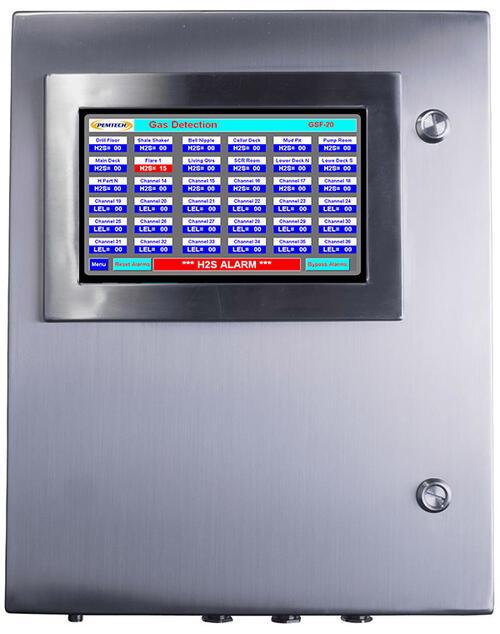

Model PT2000/H Series is a PLC based gas monitor & controller with a built in RF transceiver for Wireless Data Communication with Remote gas detectors. The unit is fully programmable using the color touch screen. System can be programmed to communicate with up to 64 Detectors over wireless Network.
Up to 4 Gigabytes of Flash memory for Historical Data Logs. Log files downloaded via USB port to a flash stick into Excel file format.
An optional Quad Band GPRS Cell Module is also available to transmit Alarm Text Messages over mobile phone. Ethernet Port and an RS485 Comm Port are also available for user PLC communication.
All wireless toxic and combustible gas detectors. Maximum of 64 detectors on a network. Optional Analog input modules for wired detector interface.
900 MHz (North American
2.4 GHz (International)
Data Transmit up to 17 Km with directional antenna. Wireless detectors with dipole antenna.
Range:900 MHz : 5 Km2.4 GHz : 2 Km
Up to 4 GB for data storage
2 Historical logs are maintained
* Interval Log : Maximum and average readings of each detector record every interval. Log interval user programmable (15 minutes to 1 hour)
* Event Log : Records all alarm and fault conditions, Bypass and calibrate mode for each detectors. Also low battery indication and other system failure conditions.
All historical data downloaded to a flash drive via USB port on the front panel. All data in MS-Excel file format.
32 °F to +131°F (0 °C to +55 °C)
