Alarm Station Class I, Division 1- Explosion Proof

Explosion Proof Class I, Division I Alarm Station

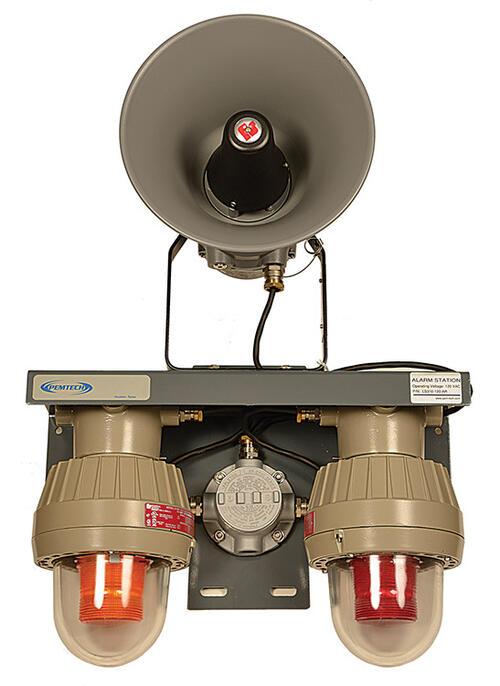

Model LS310 Series alarm stations are designed for use in heavy industrial applications. The alarm station consists of dual strobe lights and a horn.

Strobe lights are available in various dome colors. The alarm assembly is specifically designed for explosion-proof atmospheres and/or corrosive environments. The alarm station is Type 4X rated; corrosion resistance is achieved with a powder epoxy finish applied over the mounting plate and copper-free aluminum housings of the strobe lights and the horn. The strobes and horn both are CSA approved and UL Listed for Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F & G; Class I, Division 2, Groups A, B; and Class III.

Applications

Technical Specifications

Power Input

120 VAC 50/60 Hz
240 VAC 50/60 Hz
24 VDC

Overall Dimensions

12″ Wide x 16″ High x 19″ Deep

Operating Current

Strobe Light

Horn

120 VAC:

240 VAC:

24 VDC:

0.6 amps

0.3 amps

1.9 amps

0.5 amps

2.0 amps

Operating Temperature

-50 °C to +65 °C

Ingress Protection

Strobe: IP66
Horn: IP65

Strobe Flashing Rate

80 Flashes per Minute

Effective Candle Power

850

Available Lens Colors

Amber, Blue, Clear, Red, Green

Sound Output

124 decibels @ 1 meter

Approvals

CSA, UL
Class I Division 1 Explosion Proof

Strobe Light: Groups C & D; Class II, Division 1, Groups E, F & G; Class I, Division 2, Groups A, B; and Class III.

Horn: Groups B, C & D.

Warranty

1 year
