Alarm Station Class I, Division 2 - Hazardous Locations

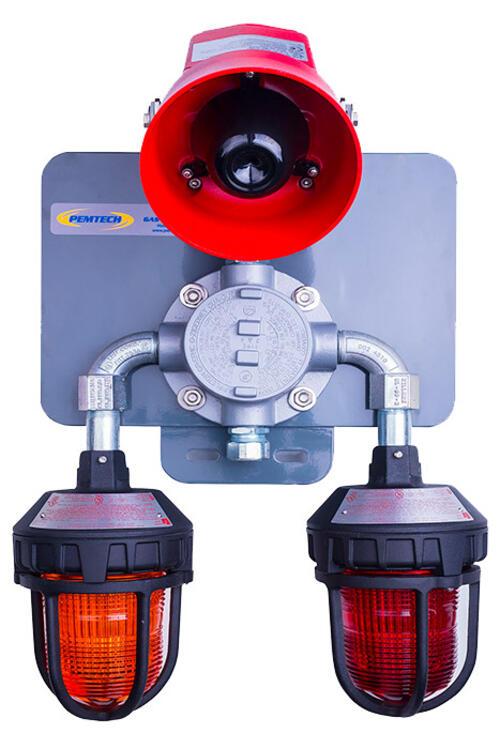

Dual Strobe & Horn Alarm Station

Model LS340 Series alarm stations are designed for use in heavy industrial applications. The alarm station consists of dual strobe lights and a horn. Strobe lights are available in various dome colors. The alarm assembly is specifically designed for hazardous atmospheres and/or corrosive environments. The alarm station is Type 4X rated; corrosion resistance is achieved with a powder epoxy finish applied over the mounting plate and copper-free aluminum housings of the strobe lights. The strobe lights CSA approved and UL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; and Class III.

Applications

Technical Specifications

Power Input

120 VAC 50/60 Hz
240 VAC 50/60 Hz
24 VDC

Overall Dimensions

12″ Wide x 20″ High x 12″ Deep

Weight

16 Lbs

Operating Current

Strobe Light

Horn

120 VAC:	0.18 amps	180 mA
240 VAC:	0.35 amps	90 mA
24 VDC:	1.6 amps	800 mA

Operating Temperature

-50 °C to +65 °C

Ingress Protection

Strobe: IP66
Horn: IP65

Strobe Flashing Rate

80 Flashes per Minute

Effective Candle Power

165

Available Lens Colors

Amber, Blue, Clear, Red, Green

Sound Output

117 decibels @ 1 meter

Approvals

CSA, UL
Class I Division 1 Hazardous Location

Strobe Light: Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; and Class III.

Horn: ATEX
II 2G Ex d IIB T4 Ta. -50° to +70°C
II 2G Ex d IIC T4 Ta. -50° to +55°C
