Fiberglass, Stainless Steel & Explosion Proof Enclosures

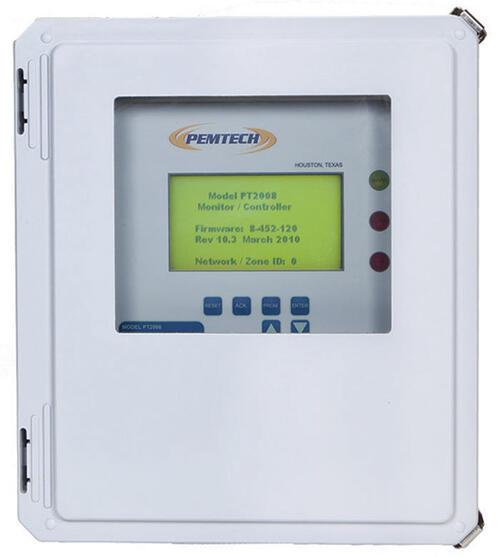

Model PT2008 Series is a multichannel gas monitor & controller that can interface up to 16 remote gas detectors & transmitters. The monitor is fully programmable for the sensor type and alarm levels using keypad on the front panel.
Easy user interface to setup parameters. Eight (8) common alarm relays for 3 levels of alarm for each gas type detector. Historical data logs include defined internal log (15 minutes to hour) and 200 most recent event or alarm log. Data log and system configuration parameters are stored in non-volatile memory. Historical data logs are downloaded via USB port to a flash stick into an Excel file format.
Monitor comes in standard with an RS-485 communication port for mimic panel or communication with user PLC.
16 Channel Capacity
All Pem-Tech’s transmitters (4-20mA) and serial addressable detectors. Optional wireless gateway to interface with wireless detectors.
8 fully programmable relays for 3 distinct levels of alarms.
Relay Type: SPDT Form “C” type contacts
5 Amps @ 250 VAC or 30 VDC
110/220 VAC to 24 VDC
* 50 Watt power supply within the monitor enclosure for 8-Channel configuration.
* External 80 Watt power supply for 16 Channel configuration.
Nominal 80 mA @ 24 VDC
200 mA maximum with all alarm relays active.
Monitor Only, power consumption of total number of detectors not included)
240 x 128 Graphic LCD display with back light Amber and red LED indicators for sensor Alarm and Fault condition
90 Days of data log records are maintained in a non-volatile memory. Built in smart algorithm for data compression for zero log records. Log records may, therefore, be saved for up to 6 months.
* Interval Log : Maximum and average readings of each detector record every interval. Log interval user programmable (15 minutes to 1 hour)
* Event Log : Records all alarm and fault conditions, Bypass and calibrate mode for each detectors. Also low battery indication and other system failure conditions.
All historical data downloaded to a flash drive via USB port on the front panel. All data in MS-Excel file format.
* USB Port: For Data Download to flash drive
* RS-485 for Mimic / Repeater Panel or user PLC
14 °F to 131°F (-10 °C to +55 °)
Nema 4X, Fiberglass, IP 65 Wallmount
Nema 7, Explosion Proof Wallmount CSA, UL
