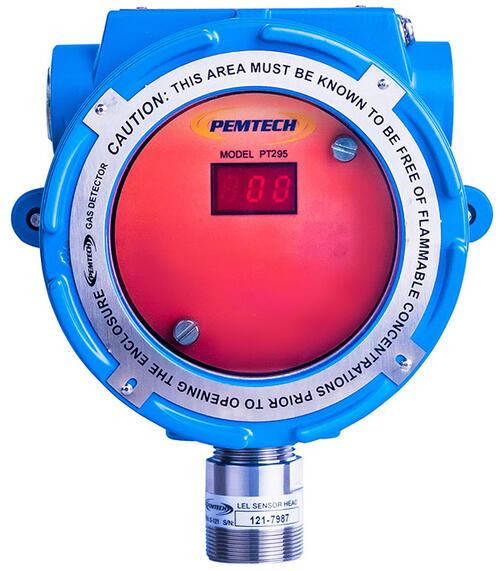

Model PT295 Series is a 24 VDC powered gas detector to monitor combustible or Hydrocarbons vapors in air. Detection range is 0-100% LEL (lower explosive limit).
The complete sensor consists of a 316 stainless steel sensor head assembly and an interface module enclosed in a flame proof instrument enclosure. A linear 4-20mA analog signal proportional to 0 to 100% of the detection range is generated by the interface module. Also a digital display and a fully programmable alarm relay is also provided on the interface module.
The detectors feature a simple non-intrusive automated calibration without any manual adjustments. Analog signal and alarm relay are inhibited during calibration mode to avoid any false alarms.
What are the Features of our Catalytic Bead Gas Sensor?
Sensor Type
Continuous Diffusion Catalytic Bead
Electrical Classification
| ATEX: | II 2G Ex d IIC T6 |
| CSA: | Class I, Div 1 & 2, Groups B, C & D C22.2 No 30-M1985 & C22.2 No 142-M1987 |
Humidity Range
Dimensions
| Height: | 7.4 inches ( 188 mm) |
| Width: | 6.2 inches (159 mm) |
| Depth: | 4.9 inches (125 mm) |
Ingress Protection
Power Input
< 3.5 Watts
| Fault: | 0 mA |
| Calibrate Mode: | 2 mA |
| Over Range: | > 21 mA |
Transient over voltage suppressor
Reverse Polarity protection
EMI / RFI Immunity
Three wire shielded cable for power and analog signal.
Max of 300 Ω load for analog output
Dust or Splash guard, Flow Adapter with tube fittings, Sensor Duct Mount Kit, Pole Mount brackets.
3/4” NPT Female
Adapter available for 1/2” NPT or M20
Two year Electronics
One year Sensor head assembly
