PT900 Series Monitors & Controllers

Model PT900-12R Series Twelve (12) Channels

Rack mount 3U - 19”

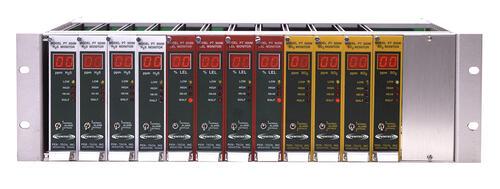

Model PT950 Series is a modular designed Monitor-Controller that provides up to twelve (12) channels of continuous gas detection. Control modules in a card cage assembly are front accessible with independent alarm status LED indicators, alarm Reset and Acknowledge switches. Modules interface to Pem-Tech’s toxic and combustible gas sensors & transmitters. Additionally each module has two digit LED display and 3 levels of independent alarm levels. Alarm levels are fully programmable via switches on the front panel. One of the safety features is a flashing digital display when the control module is in alarm bypass mode. The flashing display is an indication to the personnel in the control room about the alarm bypass status. An RS-485 serial communication port for the interface to Mimic or Repeater panel or to a client PLC or DCS system.

Monitors & Controllers

PT900 Series Modular Control Monitor

PT500 & PT2008 Multi Channel Controllers

PT2000-H Multichannel Controller

PT750 Series Annunciator / Repeater

Applications

Key Features

Specifications

Electrical Classification

Nema 1 Panel Mount. Standard 3U – 19″ rack-mount

Channels / Inputs

Up to 12 Analog Input
(4-20mA DetectorsTransmitters)

Power Input

24 VDC

Power Consumption

Per Control Module
40mA @ 24VDC nominal
90mA max. with alarm active relays.
(power consumption of detectors not included)

Discrete Alarm Relays

3 Levels of alarm (Low, High & High-High)
1 Sensor Fault
SPDT Form “C” type Relay contacts
5Amps @ 250 VAC or 30 VDC

Common Alarm Relays

Four (4) each alarm relay contacts
Each relay rated 10Amps @ 250VAC / 28 VDC

Display & Indicators

Bright LED digital display
4 each Alarm LED Indicators:
Amber for Low Alarm, Red for High, High-High and Fault
Flashing digital display if module in alarm bypass mode.

Operating Temperature

-40 °F to +158 °F (-40 °C to +70 °C)

Serial Port Peripherals & Interface

RS-485 MODBUS RTU Compatible with PLC’s, SCADA and DCS systems. MODBUS registers defined in the control Module: Gas concentration, current alarm levels and alarm status, sensor calibration mode, Remote alarm Reset and Bypass

Asscesseries

Mimic or Repeater Panel
Purge kit for pressurized enclosure to be used in hazardous locations (Stainless Steel Enclosures only)

Approved Enclosure Options

Approvals

ABS Type Approved
