Model LS210 Series Nema 4X Safe Area
Contact Us

Alarm Stations

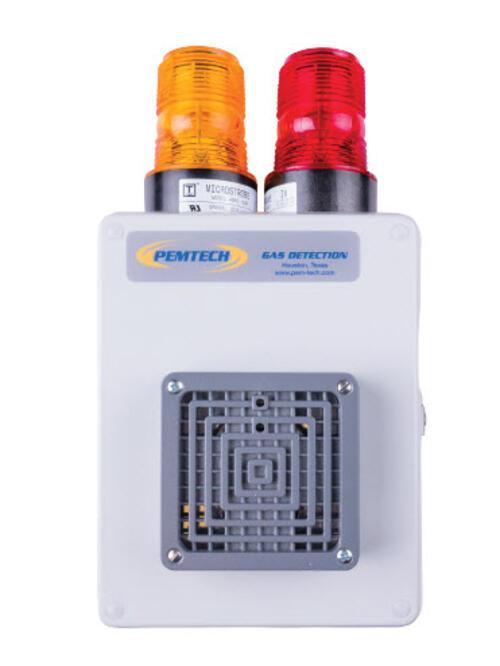

Safe Area Alarm Station

Model LS210 Series alarm stations are designed for use in Save Area. The alarm station consists of dual strobe lights and a singel tone buzzer. Strobe lights are available in various dome colors. The alarm assembly is specifically designed for indoor / outdoor use. Rated Type 4X, weatherproof.

View Data Sheet
Technical Specifications

Applications

Request a Quote

* Required Field

Technical Specifications

Power Input
120 VAC 50/60 Hz
240 VAC 50/60 Hz
24 VDC
Overall Dimensions
6” Wide x 14” High x 7” Deep

Weight

6 Lbs
Operating Current

Strobe Light

Buzzer

120 VAC:

240 VAC:

24 VDC:

0.07 amps

0.07 amps

0.3 amps

0.18 Amps

0.09 Amps

0.7 Amps

Operating Temperature

-40 °C to +65 °C

Ingress Protection

IP65, Nema 4X Weatherproof

Strobe Flashing Rate

60 – 80 Flashes per Minute

Effective Candle Power

50

Available Lens Colors

Amber, Blue, Clear, Red, Green

Sound Output

110 decibels @ 1 meter

Approvals

Strobes & Buzzer UL Listed

Warranty

1 year
