Ultra1000 Series Fixed Gas Sensors

Ultra1000 Series Carbon Dioxide (CO2)

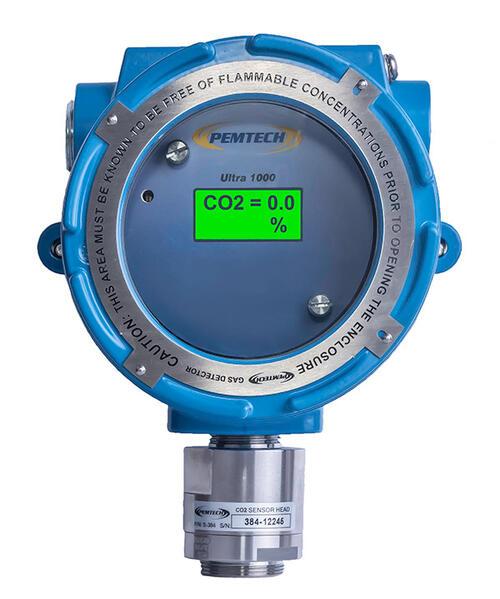

The Ultra1000 Series is a 24 VDC powered gas detector to monitor carbon dioxide vapors in air. The complete sensor consists of a stainless steel sensor head assembly and an interface module enclosed in a flame proof instrument enclosure.

Interface module generates a 4-20mA signal proportional to O to 100% of the detection range. Digital display and two (2) fully programmable alarm relays for Low and high gas alarm are also provided on the interface module. A half-duplex RS-485 port for MODBUS RTU communication to user PLC or control system.
The detectors feature a simple non-intrusive automated calibration without any manual adjustments. Analog signal and alarm relays are inhibited during calibration mode to avoid any unnecessary or false alarms.

Fixed Sensors

PT295 Series Gas Detector

PT395 Series Gas Detector

Ultra1000 Series Gas Detector

Applications

Key Features

Technical Specifications

Sensor Type

Continuous diffusion / absorption
Non-dispersive Infrared Optical (NDIR)

Measuring Ranges Available

0-10% & 0-100 % Volume

Repeatability

± 2 % Full Scale

Zero Drift

< 5% per year

Response Time

T50 < 15 seconds
T90 < 30 seconds

Accuracy

± 2 % Full Scale

Electrical Classification

Explosion Proof Enclosure

ATEX:	II 2G Ex d IIC T6
CSA:	Class I, Div 1 & 2, Groups B, C & D

Approvals

CSA, ATEX / IECEx
ABS Type Approved

Operating Temperature Range

-40°F to +149°F (-40°C to +65°C)

Humidity Range

10 – 90% RH (non condensing)

Storage Temperature

-40°F to +185°F (-40°C to +85°C)

Dimensions

Height:	7.4 inches ( 188 mm)
Width:	6.2 inches (159 mm)
Depth:	4.9 inches (125 mm)

Ingress Protection

NEMA4X, IP66

Display and Indicators

2 line by 8 character display with backlight for gas reading, Alarms and Fault conditions

Power Input

12- 28 VDC (24 VDC Nominal)

Power Consumption

< 2 Watts

Typical Sensor Life

5 Years in air

Alarm Relays

Programmable Low and High Alarms, Fault Alarm
SPDT Form “C” Relays
2 A @ 250 VAC or 30 VDC

Calibration

Non-Intrusive automated calibration
No manual adjustments required

Analog Output

Linear 4-20 mA output

Fault:	0 mA
Calibrate Mode:	2 mA
Over Range:	> 21 mA

Serial Communication

RS-485 Half Duplex
MODBUS RTU Protocol

Input / Output Protection

Transient over voltage suppressor
Reverse Polarity protection
EMI / RFI Immunity

Cable Requirement

Three wire shielded cable for power and analog signal.
Max of 300 Ω load for analog output

Accessories

Dust or Splash guard, Flow Adapter with tube fittings, Sensor Duct Mount Kit, Pole Mount brackets.

Warranty

Cable Entry

3/4" NPT Female
Adapter available for 1/2" NPT or M20

Two year Electronics
One year Sensor head assembly
