Solar Gas Wireless Alarm Station

Request a Quote

* Required Field

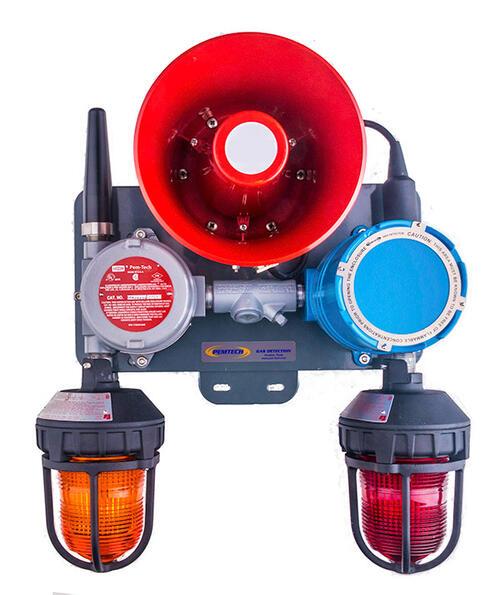

PemTech LSW Series Wireless alarm stations are designed for use in both temporary and permanent installations. Easily deployable battery operated multiple alarms stations can communicate with PemTech wireless controller on a single network. The alarm station consists of dual strobe lights and a horn. Strobe lights are available in various dome colors. The rechargeable lithium battery pack provides enough energy for 4 months of continuous operation without alarms and 10 hours with all alarms active. Battery pack can be recharged by any standard desktop charger similar to the ones used for laptop computers with 2.1 mm jack. Optional solar charging package is also available. Unit also comes in with 24 VDC external power input provided by the user.

The alarm station is designed for use in hazardous locations. The alarm station is Type 4X rated. The strobe lights and horn are rated Class I, Division 2, Groups B, C and D.

Applications

Technical Specifications

Electrical Classification
Class I Div 2; Groups B, C, D
Dimensions
14″ Wide x 20″ High x 12″ Deep

Weight

24 Lbs.
Operating Temperature Strobes & Horn
-50 °C to +65 °C
Strobe Flashing Rate
80 Flashes per Minute
Effective Candle Power
165
Available Lens Colors
Amber, Blue, Clear, Red, Green
Sound Output
117 decibels @ 1 meter

Tone

32 user selectable tones
Power Input Options
12-14 VDC External Power
Or
Rechargeable Lithium Battery pack
Power Consumption
140 mW Power save mode
26 Watt max with all 3 A/V Alarms active
Battery Specifications
Rechargeable Lithium battery with built in battery charging circuitry. Battery pack Charged using a standard desktop battery charger with 2.5 mm jack
Operating time:> 4 months no alarms
10 hours with all alarms active
Lithium Battery Operating Temperature
-40 °C to +60 °C – Normal Operting mode
-30 °C to +60 °C – Discharge temperature with all alarms active
Frequency
900 MHz (North America)
2.4 GHz (Internation)

Operating Range

Outdoor RF Line of Sight 2.5 Km with standard dipole antenna

Antenna Options

Standard dipole antenna with antenna guard. Optional high gain omni antenna with coax cable

Number of Alarm stations per network

Up to 32 alarms can be interfaced on a network with single Wireless controller
