Wireless Infrared Gas Detector for Hydrocarbons

LEL Combustible Gas Sensors & Detectors

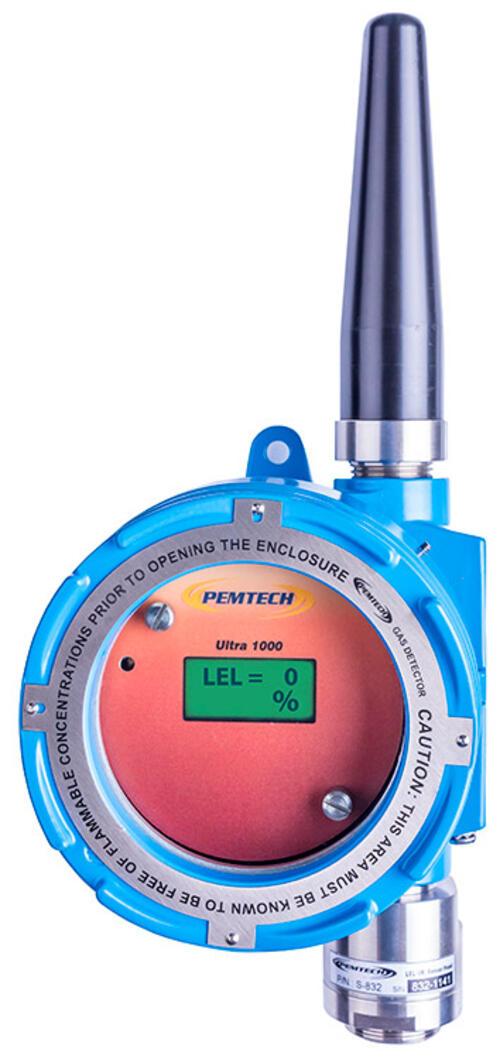

The Ultra1000 IR-LEL is a low power wireless gas detector to detect and monitor combustible hydrocarbon gases in air. Detection range is 0-100% LEL (Lower Explosive Limit) using miniature non-dispersive infrared sensing technology (NDIR). The Ultra1000 LEL gas detector is powered by internal rechargeable lithium batteries. The unit can also be connected to an external power supply or a solar panel for continuous operation. The interface and the Radio Transceiver are housed in a flameproof instrument enclosure.

Wireless Gas Detection

Wireless Gas Detectors

Wireless Monitor and Controller

Wireless Remote Annunciator

Wireless Gateway and Repeaters & Dual Channel Wireless Transmitter

Wireless Alarm Station

The unit is self identifiable to the network of other Pem-Tech gas detectors and wireless controller / monitor . The unit communicates with the controller by transmitting complete data packet including the live gas concentration reading and the sensor diagnostic data such as low battery, sensor fault, and calibration mode.

Applications

Key Features of the Ultra1000 IR-LEL Gas Detector

Technical Specifications

Sensor Type

Continuous diffusion/absorption Non-dispersive Infrared Optical (NDIR) Combustible Gas

Measuring Range

0 – 100 % LEL (lower explosive limit)

Accuracy

±2% F.S. (0-50% LEL)

Repeatability

±2% F.S.

Response Time

T50 < 8 seconds
T90 < 15 seconds

Wireless Frequency

License free ISM Band
900 MHz (FHSS)
2.4 GHz (DSSS) International

Operating Range (Line of Sight)

900 MHz : 5 Km
2.4 GHz 2 : 2 Km
Greater distance can be achieved using directional antenna

Power Supply

Rechargeable Lithium battery.
Optional external 12VDC power input or Solar Panel for continuous operation.
Solar Panel : 10 Watt 12 volts

Electrical Classifications

Explosion Proof Enclosure
ATEX: II 2G Ex d IIC T6 (Tamb= -40°C to +65°C)
CSA: Class I, Div 1 & 2, Groups B, C &

Approvals

ATEX / IECEx

EN 60079-1:2014 II 2G db IIC T6 Gb

(Only with internal Lithium battery)

Operating Temperature Range

-40°F to +158°F (-40°C to +70°C)

Humidity Range

0 – 95% RH (non condensing)

Storage Temperature

-40°F to +185°F (-40°C to +85°C)

Dimensions

Height:	7.4 inches (188 mm) – Excluding antenna
Width:	6.2 inches (159 mm)
Depth:	4.9 inches (125 mm)

Ingress Protection

NEMA 4X, IP66

Warranty

Display and Indicators

2 x 8 character LCD display

Operating Time

Continuous operation with solar panel & Rechargeable battery.
45 days without charging or no sunlight (normal operation).

Accessories

Dust or Splash guard, Flow Adapter with tube fittings, Sensor Duct Mount Kit, Pole Mount brackets.

Two year Electronics & sensor head assembly
